BoolForge Tutorial 7: Dynamics of Boolean Networks
In this tutorial, we study the dynamics of Boolean networks. Building on the construction and structural analysis from previous tutorials, we now focus on how Boolean networks evolve over time and how their long-term behavior can be characterized.
You will learn how to:
simulate Boolean network dynamics under different updating schemes,
compute and classify attractors,
analyze basins of attraction,
relate network structure to dynamical behavior.
0. Setup
[1]:
import boolforge
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
1. State space of a Boolean network
A Boolean network with \(N\) nodes defines a dynamical system on the discrete state space \(\{0,1\}^N\).
Each state is a binary vector
\[\mathbf{x} = (x_0, \ldots, x_{N-1}) \in \{0,1\}^N,\]
where \(x_i\) denotes the state of node \(i\).
We use a small Boolean network as a running example.
[2]:
string = """
x = y
y = x OR z
z = y
"""
bn = boolforge.BooleanNetwork.from_string(string, separator="=")
print("Variables:", bn.variables)
print("N:", bn.N)
print("bn.I:", bn.I)
print("bn.F:", bn.F)
Variables: ['x' 'y' 'z']
N: 3
bn.I: [array([1]), array([0, 2]), array([1])]
bn.F: [BooleanFunction(f=[0, 1]), BooleanFunction(f=[0, 1, 1, 1]), BooleanFunction(f=[0, 1])]
All state vectors follow the variable order given by bn.variables. For small networks, we can enumerate all \(2^N\) states explicitly.
[3]:
all_states = boolforge.get_left_side_of_truth_table(bn.N)
pd.DataFrame(all_states, columns=bn.variables)
[3]:
| x | y | z | |
|---|---|---|---|
| 0 | 0 | 0 | 0 |
| 1 | 0 | 0 | 1 |
| 2 | 0 | 1 | 0 |
| 3 | 0 | 1 | 1 |
| 4 | 1 | 0 | 0 |
| 5 | 1 | 0 | 1 |
| 6 | 1 | 1 | 0 |
| 7 | 1 | 1 | 1 |
2. Dynamics of synchronous Boolean networks
Under synchronous updating, all nodes are updated simultaneously, defining a deterministic update map
\[\mathbf{x}(t+1) = F(\mathbf{x}(t)).\]
2.1 Exact computation
[4]:
for state in all_states:
print(state, "-->", bn.update_network_synchronously(state))
[0 0 0] --> [0 0 0]
[0 0 1] --> [0 1 0]
[0 1 0] --> [1 0 1]
[0 1 1] --> [1 1 1]
[1 0 0] --> [0 1 0]
[1 0 1] --> [0 1 0]
[1 1 0] --> [1 1 1]
[1 1 1] --> [1 1 1]
This output matches the synchronous truth table representation:
[5]:
bn.to_truth_table()
[5]:
| x(t) | y(t) | z(t) | x(t+1) | y(t+1) | z(t+1) | |
|---|---|---|---|---|---|---|
| 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 1 | 0 | 0 | 1 | 0 | 1 | 0 |
| 2 | 0 | 1 | 0 | 1 | 0 | 1 |
| 3 | 0 | 1 | 1 | 1 | 1 | 1 |
| 4 | 1 | 0 | 0 | 0 | 1 | 0 |
| 5 | 1 | 0 | 1 | 0 | 1 | 0 |
| 6 | 1 | 1 | 0 | 1 | 1 | 1 |
| 7 | 1 | 1 | 1 | 1 | 1 | 1 |
Each state has exactly one successor, so the dynamics consist of transient trajectories leading into attractors (steady states or cycles).
In this example, the network has:
two steady states: \((0,0,0)\) and \((1,1,1)\),
one cyclic attractor of length 2: \((0,1,0) \leftrightarrow (1,0,1)\).
Exhaustive attractor computation
[6]:
dict_dynamics = bn.get_attractors_synchronous_exact()
dict_dynamics
[6]:
{'Attractors': [[0], [2, 5], [7]],
'NumberOfAttractors': 3,
'BasinSizes': array([0.125, 0.5 , 0.375]),
'AttractorID': array([0, 1, 1, 2, 1, 1, 2, 2], dtype=int32),
'STG': array([0, 2, 5, 7, 2, 2, 7, 7])}
The returned dictionary contains:
STG: the synchronous state transition graph,NumberOfAttractors,Attractors,AttractorDict,BasinSizes.
The state transition graph can be decoded as follows:
[7]:
for state in range(2 ** bn.N):
next_state = dict_dynamics["STG"][state]
print(
state,
"=",
boolforge.dec2bin(state, bn.N),
"-->",
next_state,
"=",
boolforge.dec2bin(next_state, bn.N),
)
0 = [0, 0, 0] --> 0 = [0, 0, 0]
1 = [0, 0, 1] --> 2 = [0, 1, 0]
2 = [0, 1, 0] --> 5 = [1, 0, 1]
3 = [0, 1, 1] --> 7 = [1, 1, 1]
4 = [1, 0, 0] --> 2 = [0, 1, 0]
5 = [1, 0, 1] --> 2 = [0, 1, 0]
6 = [1, 1, 0] --> 7 = [1, 1, 1]
7 = [1, 1, 1] --> 7 = [1, 1, 1]
Attractors can be printed in binary representation:
[8]:
for attractor in dict_dynamics["Attractors"]:
print(f"Attractor of length {len(attractor)}:")
for state in attractor:
print(state, boolforge.dec2bin(state, bn.N))
print()
Attractor of length 1:
0 [0, 0, 0]
Attractor of length 2:
2 [0, 1, 0]
5 [1, 0, 1]
Attractor of length 1:
7 [1, 1, 1]
Basin sizes count how many states flow into each attractor. They always sum to \(2^N\).
2.2 Monte Carlo simulation
For larger networks, exhaustive enumeration is infeasible. Monte Carlo simulation approximates the attractor landscape.
[9]:
dict_dynamics = bn.get_attractors_synchronous(nsim=100)
dict_dynamics
[9]:
{'Attractors': [[2, 5], [7], [0]],
'NumberOfAttractors': 3,
'BasinSizes': [62, 28, 10],
'AttractorDict': {2: 0, 5: 0, 4: 0, 1: 0, 7: 1, 3: 1, 6: 1, 0: 2},
'InitialSamplePoints': [1,
4,
4,
2,
1,
6,
2,
3,
2,
5,
1,
2,
2,
2,
2,
7,
4,
3,
7,
6,
4,
4,
6,
1,
0,
0,
1,
4,
2,
5,
4,
4,
7,
2,
0,
7,
4,
0,
1,
6,
4,
1,
1,
0,
5,
5,
2,
4,
0,
2,
7,
4,
7,
2,
6,
1,
5,
7,
5,
7,
2,
2,
5,
1,
0,
5,
3,
3,
7,
0,
1,
0,
2,
5,
2,
7,
6,
6,
4,
6,
2,
1,
0,
5,
2,
2,
3,
1,
5,
6,
6,
7,
2,
2,
5,
5,
4,
3,
6,
4],
'STG': {1: 2, 4: 2, 2: 5, 6: 7, 3: 7, 5: 2, 7: 7, 0: 0},
'NumberOfTimeouts': 0}
The simulation returns additional information:
sampled initial states,
the number of timeouts (trajectories not reaching an attractor in time).

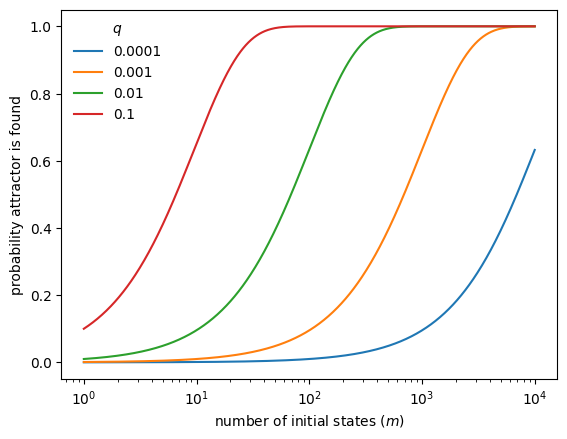

If an attractor has relative basin size \(q\), the probability that it is found after \(m\) random initializations is \(1 - (1-q)^m\).
[10]:
qs = [0.0001, 0.001, 0.01, 0.1]
ms = np.logspace(0, 4, 1000)
fig, ax = plt.subplots()
for q in qs:
ax.semilogx(ms, 1 - (1 - q) ** ms, label=str(q))
ax.legend(title=r"$q$", frameon=False)
ax.set_xlabel("number of initial states ($m$)")
ax.set_ylabel("probability attractor is found")
plt.show()
3. Dynamics of asynchronous Boolean networks
Synchronous updating is computationally convenient but biologically unrealistic. Asynchronous updating assumes that only one node is updated at a time.
3.1 Steady states under general asynchronous update
BoolForge can compute steady states under general asynchronous updating.
[11]:
dict_dynamics = bn.get_steady_states_asynchronous_exact()
dict_dynamics
[11]:
{'SteadyStates': [0, 7],
'NumberOfSteadyStates': 2,
'BasinSizes': array([0.33333333, 0.66666667]),
'STGAsynchronous': {0: {0: np.float64(1.0)},
1: {1: np.float64(0.3333333333333333),
3: np.float64(0.3333333333333333),
0: np.float64(0.3333333333333333)},
2: {6: np.float64(0.3333333333333333),
0: np.float64(0.3333333333333333),
3: np.float64(0.3333333333333333)},
3: {7: np.float64(0.3333333333333333), 3: np.float64(0.6666666666666666)},
4: {0: np.float64(0.3333333333333333),
6: np.float64(0.3333333333333333),
4: np.float64(0.3333333333333333)},
5: {1: np.float64(0.3333333333333333),
7: np.float64(0.3333333333333333),
4: np.float64(0.3333333333333333)},
6: {6: np.float64(0.6666666666666666), 7: np.float64(0.3333333333333333)},
7: {7: np.float64(1.0)}},
'FinalTransitionProbabilities': array([[1. , 0. ],
[0.5 , 0.5 ],
[0.33333333, 0.66666667],
[0. , 1. ],
[0.5 , 0.5 ],
[0.33333333, 0.66666667],
[0. , 1. ],
[0. , 1. ]])}
This reveals the same two steady states as in the synchronous case. In addition, the full asynchronous transition graph and absorption probabilities are returned.
BoolForge currently does not detect complex cyclic attractors under asynchronous updating; for those, specialized tools such as pystablemotifs are recommended.
Monte Carlo approximation
[12]:
dict_dynamics = bn.get_steady_states_asynchronous(nsim=500)
dict_dynamics
[12]:
{'SteadyStates': [0, 7],
'NumberOfSteadyStates': 2,
'BasinSizes': [161, 339],
'STGAsynchronous': {(2, 1): 0,
(0, 1): 0,
(0, 0): 0,
(0, 2): 0,
(1, 2): 0,
(6, 1): 6,
(6, 0): 6,
(6, 2): 7,
(7, 2): 7,
(7, 0): 7,
(7, 1): 7,
(1, 1): 3,
(3, 1): 3,
(3, 0): 7,
(2, 0): 6,
(4, 1): 6,
(3, 2): 3,
(2, 2): 3,
(5, 1): 7,
(4, 0): 0,
(4, 2): 4,
(1, 0): 1,
(5, 2): 4,
(5, 0): 1},
'InitialSamplePoints': [2,
1,
6,
1,
2,
2,
4,
7,
6,
7,
2,
2,
2,
0,
1,
3,
0,
2,
2,
2,
2,
2,
5,
6,
0,
4,
2,
7,
4,
1,
4,
1,
2,
3,
7,
2,
2,
1,
3,
6,
0,
4,
3,
3,
3,
6,
6,
5,
5,
6,
3,
7,
4,
7,
5,
2,
5,
1,
7,
4,
1,
4,
4,
3,
6,
6,
4,
6,
7,
7,
0,
2,
7,
0,
1,
7,
5,
4,
5,
1,
3,
7,
6,
5,
6,
5,
4,
1,
6,
0,
7,
3,
4,
0,
4,
5,
0,
6,
2,
6,
0,
7,
2,
1,
6,
4,
6,
1,
1,
2,
5,
1,
6,
4,
2,
0,
4,
2,
1,
4,
7,
0,
3,
4,
7,
2,
7,
1,
2,
5,
5,
7,
2,
6,
5,
5,
4,
0,
5,
0,
3,
6,
5,
1,
0,
6,
0,
0,
4,
7,
4,
7,
1,
4,
3,
6,
6,
1,
2,
1,
4,
0,
6,
7,
2,
2,
6,
4,
0,
6,
6,
2,
4,
2,
5,
2,
5,
3,
0,
0,
4,
1,
5,
3,
6,
3,
7,
2,
3,
4,
2,
7,
0,
4,
1,
0,
7,
6,
2,
7,
5,
1,
1,
1,
7,
6,
3,
0,
2,
4,
7,
2,
5,
7,
0,
1,
5,
2,
0,
3,
2,
6,
7,
3,
6,
3,
3,
0,
0,
3,
2,
7,
2,
5,
0,
0,
3,
1,
3,
2,
6,
0,
1,
4,
0,
4,
0,
2,
3,
1,
7,
5,
7,
2,
0,
3,
1,
2,
2,
5,
7,
1,
1,
4,
4,
7,
4,
6,
1,
7,
3,
1,
1,
5,
0,
7,
5,
3,
6,
2,
0,
4,
5,
0,
1,
2,
6,
2,
2,
0,
7,
7,
6,
4,
5,
3,
5,
2,
1,
7,
6,
3,
4,
7,
5,
3,
6,
0,
7,
6,
2,
6,
7,
4,
4,
2,
6,
1,
5,
1,
0,
6,
5,
3,
6,
7,
4,
1,
1,
5,
5,
4,
2,
3,
1,
1,
7,
0,
5,
2,
0,
3,
2,
5,
6,
7,
7,
6,
1,
7,
3,
3,
4,
0,
3,
0,
3,
3,
2,
6,
2,
2,
5,
7,
2,
5,
2,
3,
5,
3,
5,
4,
0,
0,
7,
3,
3,
5,
3,
5,
5,
3,
2,
4,
1,
5,
4,
4,
6,
6,
1,
0,
2,
4,
3,
3,
5,
4,
5,
7,
6,
1,
0,
1,
5,
5,
7,
5,
6,
6,
7,
4,
6,
3,
0,
6,
2,
6,
0,
1,
4,
5,
5,
5,
3,
7,
5,
5,
4,
6,
3,
4,
2,
1,
4,
2,
5,
4,
6,
5,
0,
2,
6,
6,
6,
3,
7,
2,
1,
0,
3,
7,
2,
0,
5,
1,
4,
1,
0,
7,
7,
3,
1,
6,
7,
2,
3,
1,
5,
0,
7,
0,
2,
2,
7,
5,
2,
4,
2,
2,
4,
0,
1,
3,
4,
5,
6,
7,
6,
1,
4,
5,
7,
3,
3,
4,
1,
3,
3,
7]}
The simulation provides:
a lower bound on the number of steady states,
approximate basin size distributions,
samples of the asynchronous state transition graph.
Sampling from a fixed initial condition
[13]:
dict_dynamics = bn.get_steady_states_asynchronous_given_one_initial_condition(
initial_condition=[0, 0, 1], nsim=500
)
dict_dynamics
[13]:
{'SteadyStates': [7, 0],
'NumberOfSteadyStates': 2,
'BasinSizes': [252, 248],
'TransientTimes': [[2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2,
2],
[1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1]],
'STGAsynchronous': {(1, 0): 1,
(1, 1): 3,
(3, 1): 3,
(3, 0): 7,
(7, 0): 7,
(7, 1): 7,
(7, 2): 7,
(1, 2): 0,
(0, 2): 0,
(0, 1): 0,
(0, 0): 0,
(3, 2): 3},
'UpdateQueues': [[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0],
[1, 0],
[1, 3, 7],
[1, 0]]}
Summary and outlook
In this tutorial you learned how to:
simulate Boolean network dynamics,
compute synchronous attractors exactly and approximately,
analyze basin sizes,
compute steady states under asynchronous updating.
This concludes the function- and network-level analysis. Subsequent work focuses on large-scale dynamical analysis, perturbations, and stability in Boolean network models.
